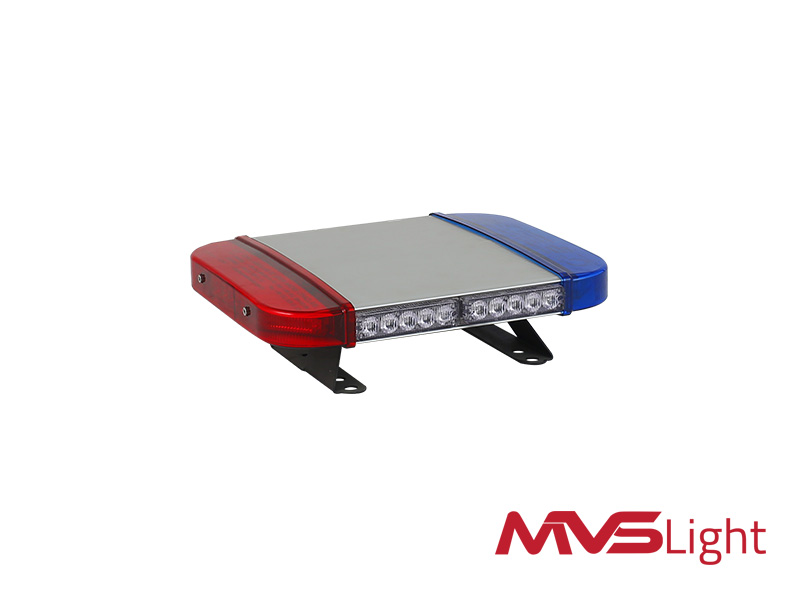

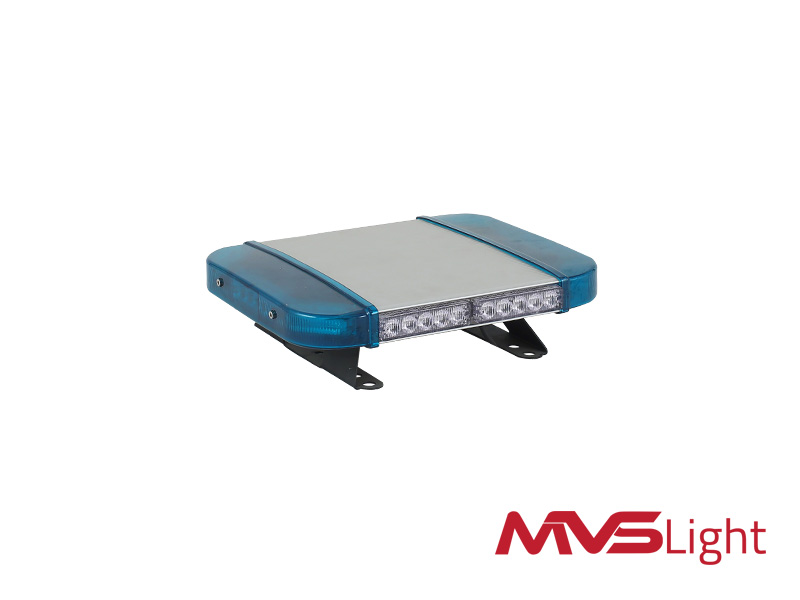

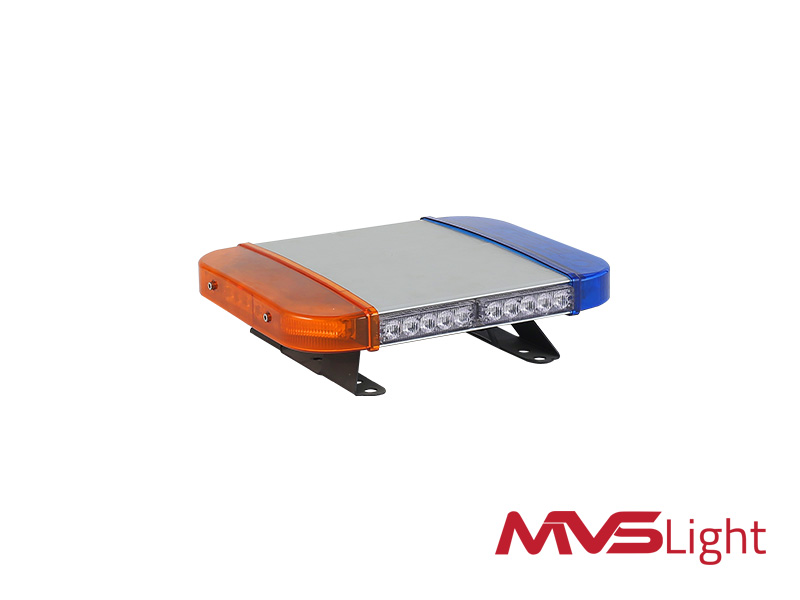

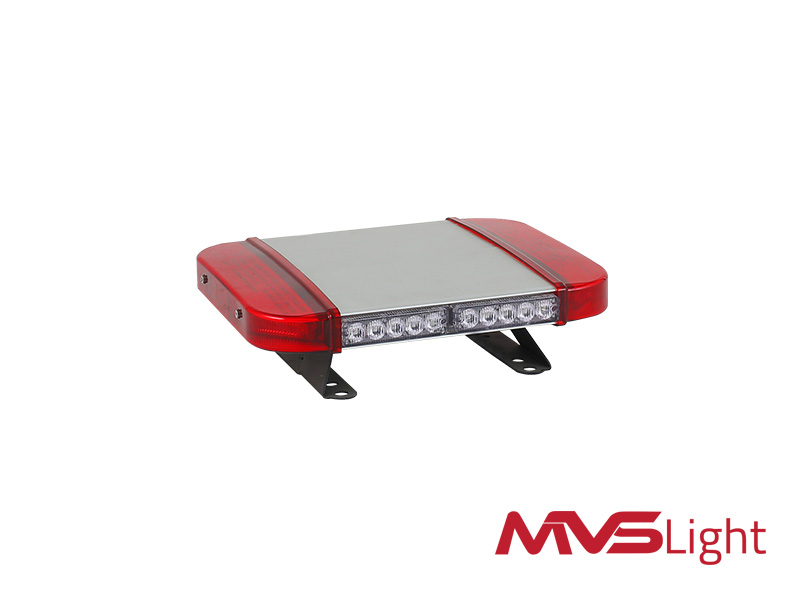

15" A Type Multi LED Light Bar

Slim Light Bar with Metal Top and Bottom cover. Colors: Clear/Red/Blue/Amber/Green. Dimension: 367×340×45 mm
Model Number : MVS-A-20022

• Compact and aerodynamic design minimizes air resistance in high speed vehicles.
• Transparent polycarbonate outer and inner lens provides clear signal light transmission.
• Stainless steel materials, including mounting and connection parts.
• Metal cover and base
• Strong mechanical strength, heat, and UV light resistance.
• Excellent protection from vibration, dust, moisture and high temperature.
• Available in customized color arrangements: Clear/Red/Blue/Amber/Green.
• Lead-free solder and electronic component used in accordance with European standards.
• LED Light Bars manufactured with EMC/EMI standards.
• Ready to be customized to meet your special requirements.
• Protection rating: IP65





Product Code

A – 20022 / SM

Operating Voltage

9 – 30 VDC

LED

3 WATT POWER LED

LED Life time

100.000 Hours

Flashing mode

7

Flashing sequence

2 – 4 Hz

Dimensions (mm)

367×340×45

Mounting

Fixed

Cable

3.5 M Blue  (Mode), Red (+), Black(-)

Standards

ECE R65, ECE R10, SAE J

Quality system

CE, ISO 9001
