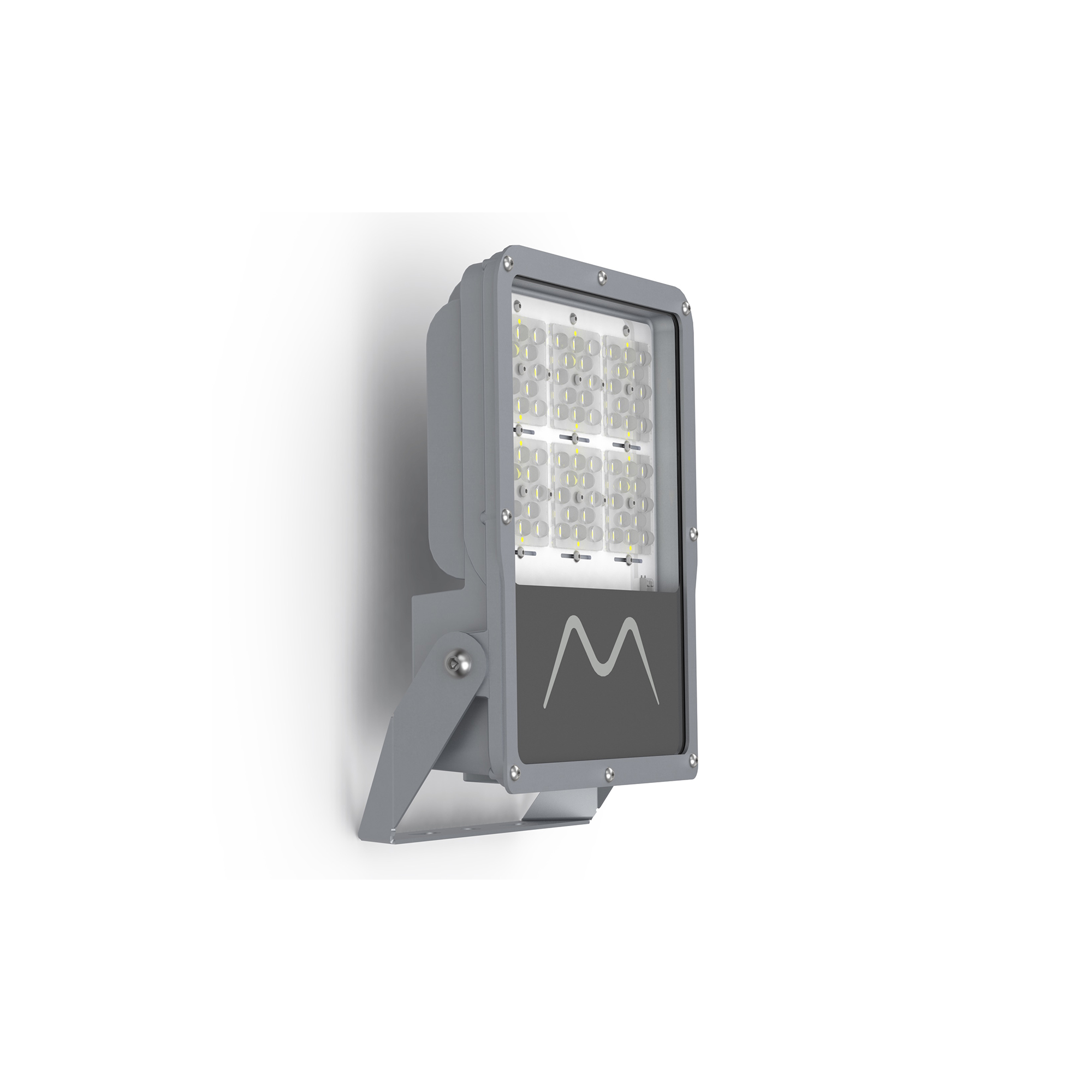

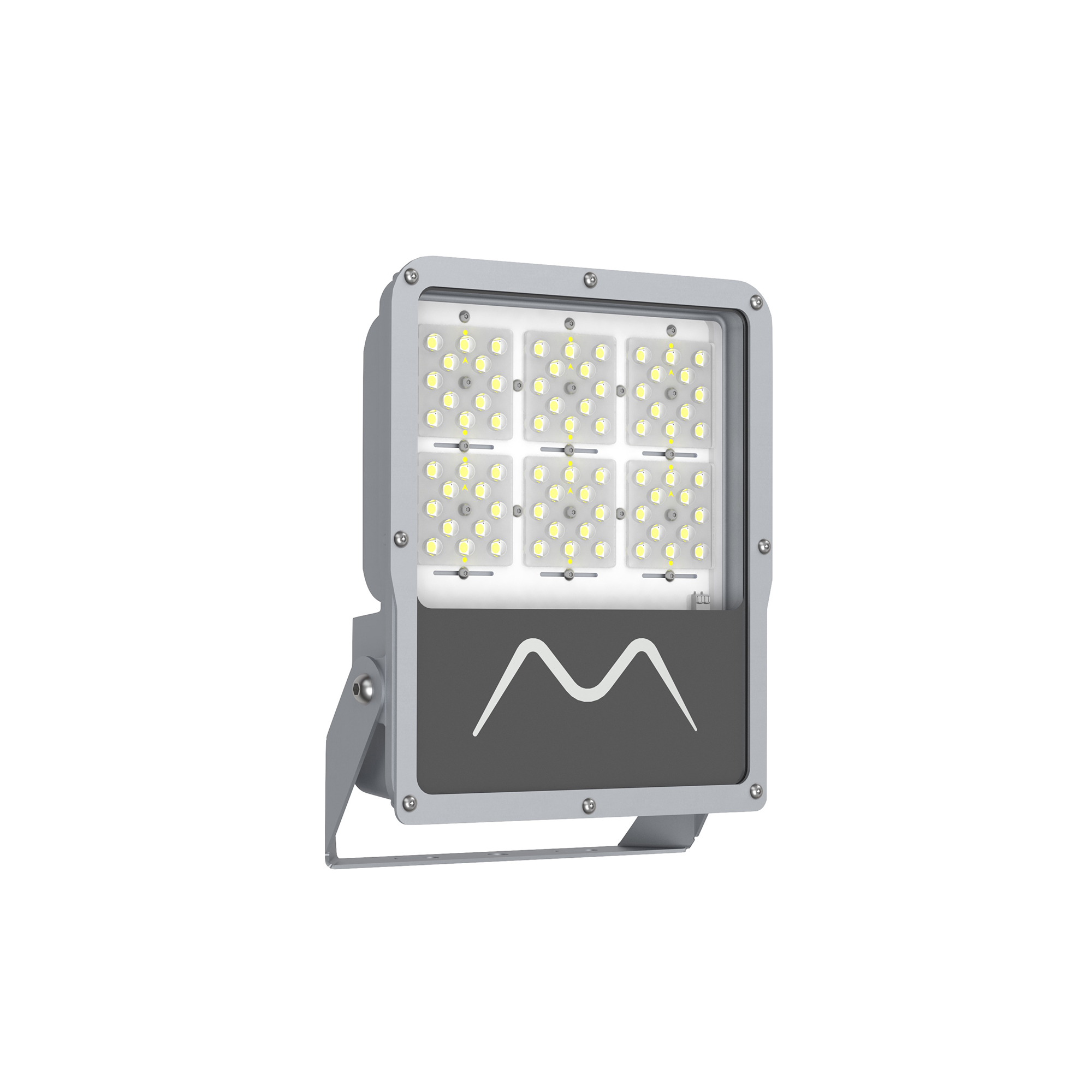

LPM-P 40 W / 60 W Ledli Projectors ;
Economical series products designed for the best cost. Supports 5 different optical structures for indoor and outdoor applications. It is manufactured with 3 different power. Provides the best thermal value with external ventilation wings.
| LPMP Series Projector Product Groups |
| Product Code |
LPM-P-AC-72S-40-[XXXX-XX]
|
LPM-P-AC-72S-60-[XXXX-XX] |
LPM-P-AC-72S-70-[XXXX-XX] |
| Optical Specifications |
| Luminous Flux |
5.200 lm |
7.500 lm |
8.400 lm |
| Power |
40 W |
60 W |
70 W |
| CCT |
3000 K , 4000 K , 5000 K , 6500 K |
| CRI |
Ra>70 |
| Optics |
30 / 60 / 90 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
2 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.90 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |

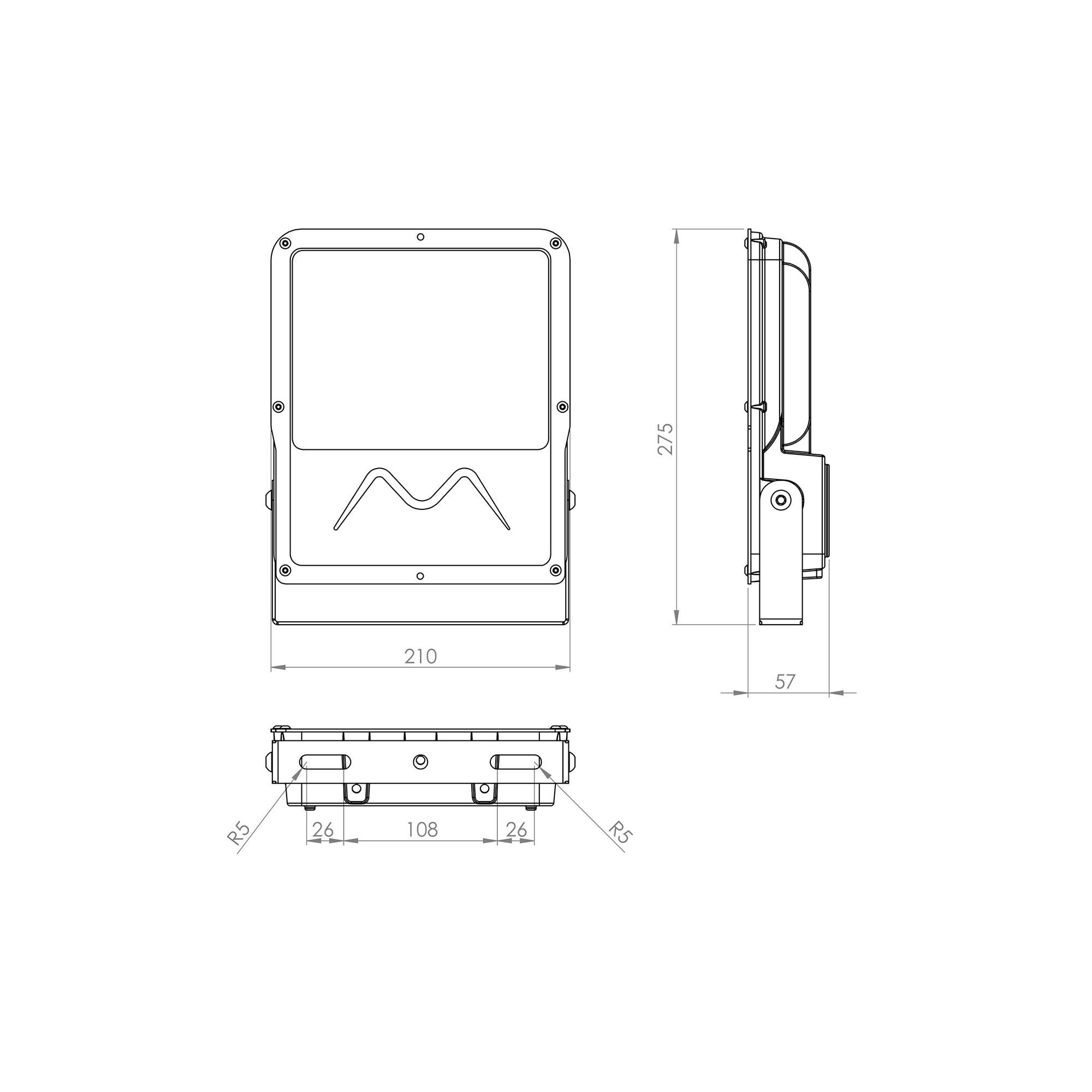

| Dimensions |
| Net Weight |
4 Kg |
4 Kg |
4 Kg |
| Box Dimensions |
220x265x80 mm |
220x265x80 mm |
220x265x80 mm |
