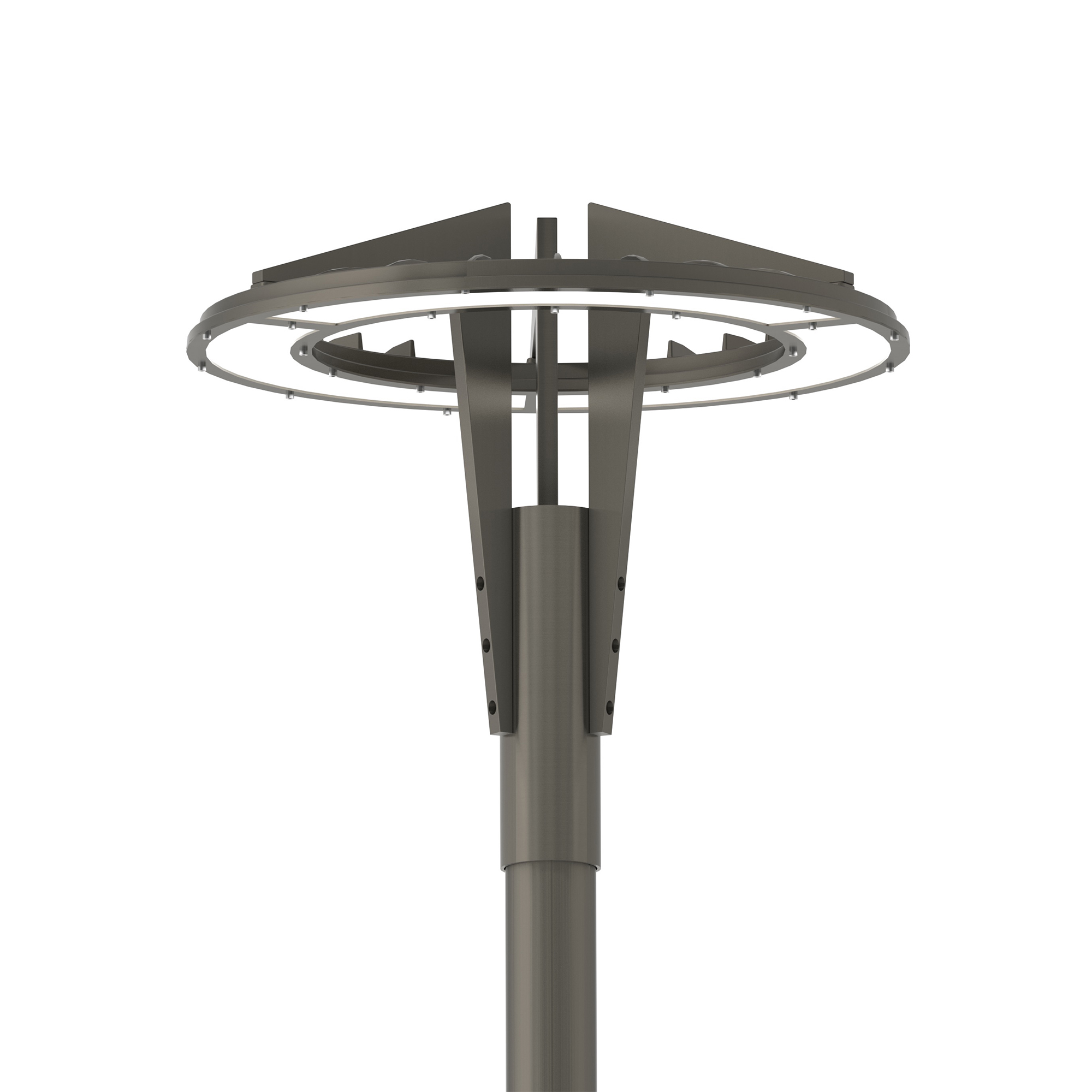

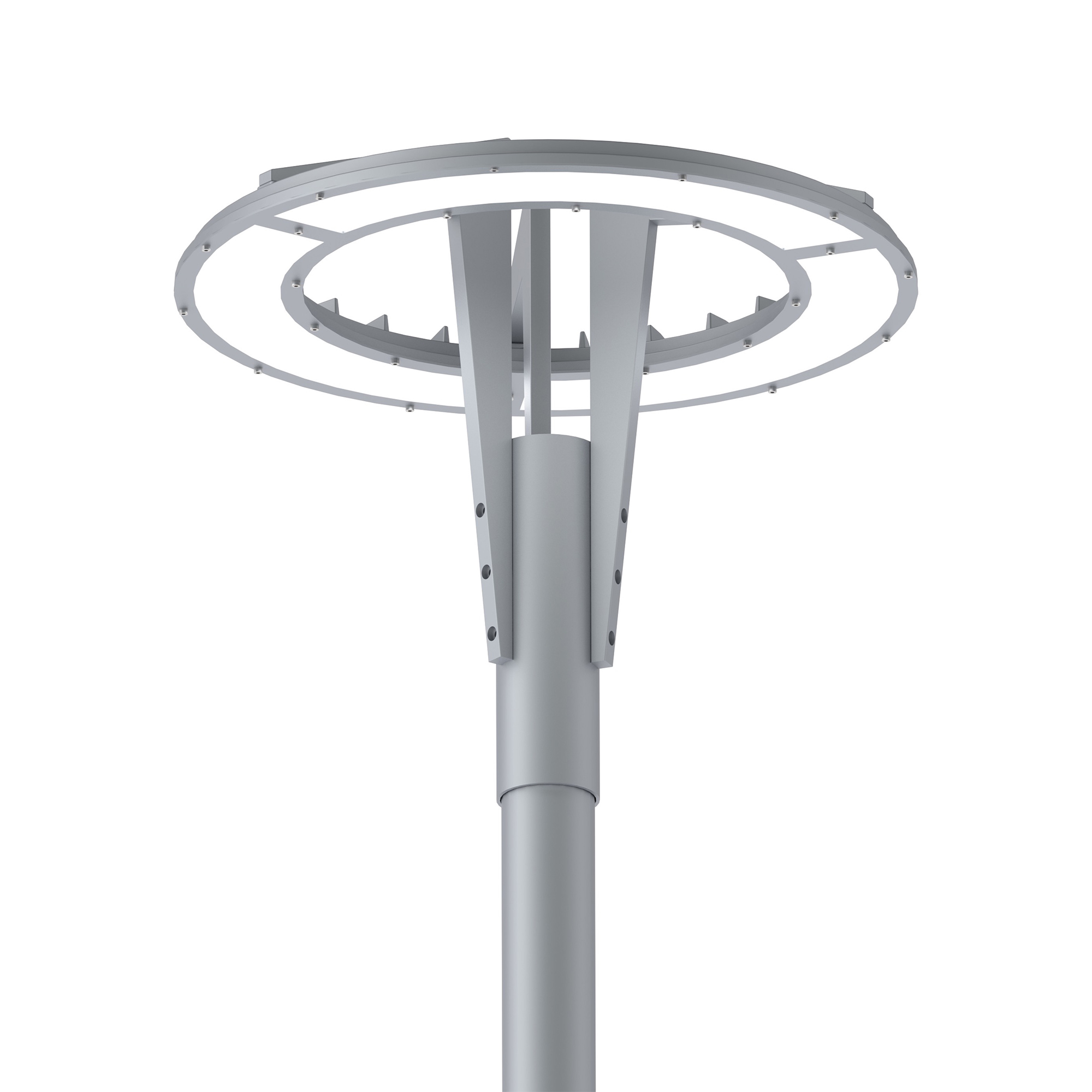

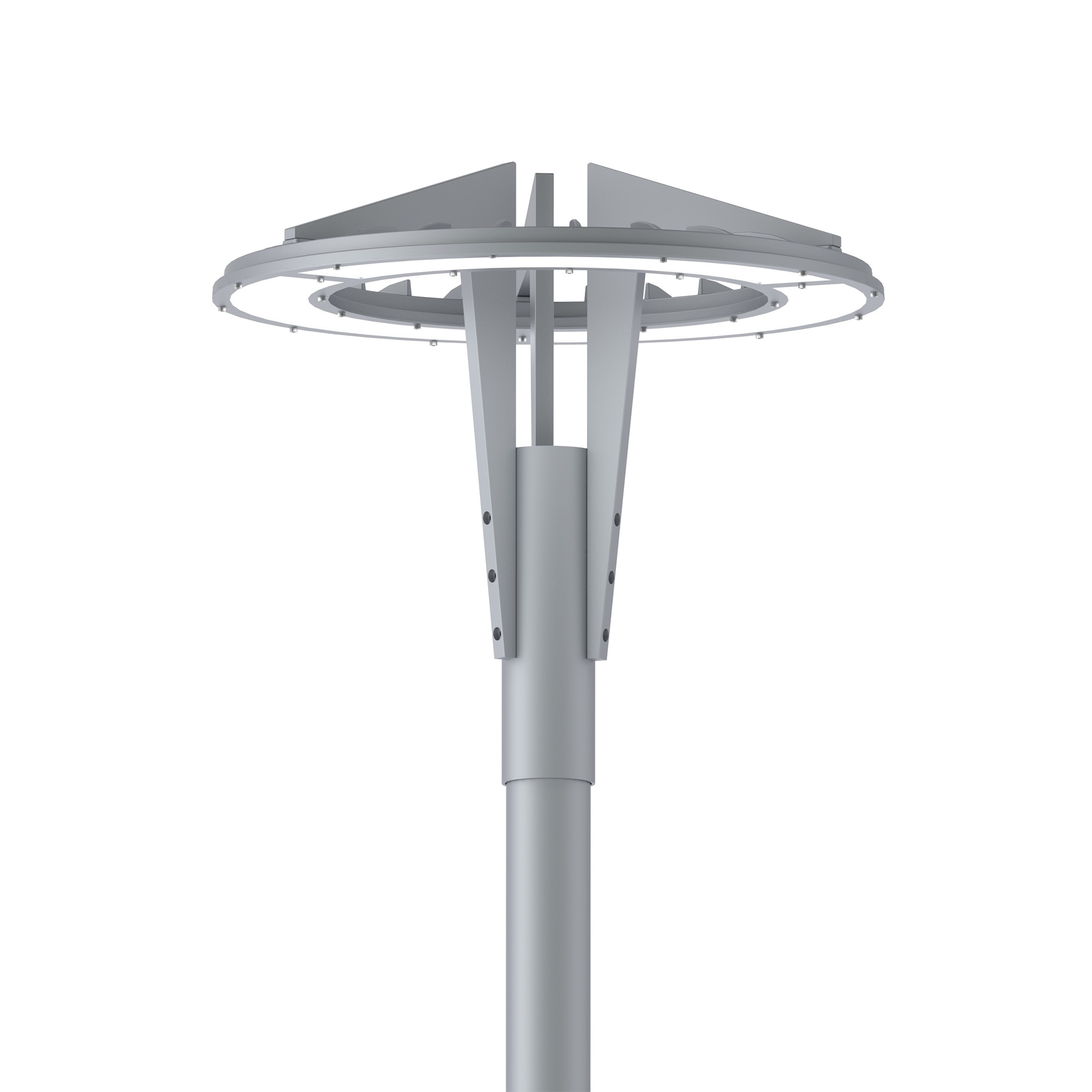

RPS-X Series Park Fixture

76 – 89 mm diameter input console is suitable for installation from below. Easy intervention to the drive bay. Led with over 50,000 hours of operating life in accordance with the LM80 and TM21 standards.

High efficiency LED technology. A non-yellowing diffuser with high permeability, resistant to heat and impacts. Electrostatic powder coated, aluminum injection body.

RPS-X Series Park Garden Fixtures
Product Codu RPS-X-AC-40-[XXXX-120] RPS-X-AC-60-[XXXX-120]
Optical Specifications
Luminous Flux 4.800 lm 7.200 lm
Power 40 W 60 W
CCT 3000 K , 4000 K , 5000 K, 6500 K
CRI Ra>70
Optics 120 Degree
Elektrical Specifications
Input Voltage 200-240 VAC
Surge Protection 2 kV
Power Frequency 50/60 Hz
PFC >0.90
Environmental
IP Protection IP65
LED Life Span >50,000Hrs(Ta=30°C@L70)
Operating Temperature -30°C to +50°C
Operating Humidity 15-90%RH
Housing Alumunium
Protection Class Class I
Dimensions
Net Weight 11 Kg 11 Kg
Box Dimensions 600x600x560 mm 600x600x560 mm
Other Details
Warranty 2 Years
Dim Specially 0-10 V or Uncontrolled
Intelligent Control Dali , Step Dim, Timer,  Zegbee , Daylight Sensor
Body Colour Gri Silver
